Ask about parameters in Flow Summary Section(see picture)

Status
Not open for further replies.

win3y

Member level 1
Joined
Jul 10, 2007
Messages
39
Helped
1
Reputation
2
Reaction score
0
Trophy points
1,286
Activity points
1,542
Hi Everybody!

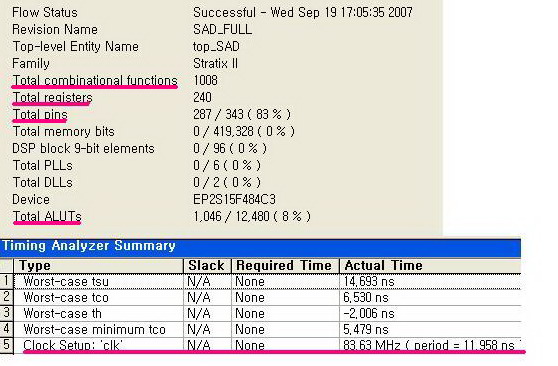

The below figure is Flow Summary Section and Timing Analysis Result (by Quartus).

Please tell me know the signification of these below parameter:
Total combination function - registers - pins - ALUTs

I need to know the relation between them and "Gate count"?
How about "Max frequency?" Is it 83,63MHz as below figure?

Thank you very much!

P/S: I referd "Help Index" but there are no answers.
(Click to enlarge)
