VINAY_RAO
Junior Member level 2
Hello all,

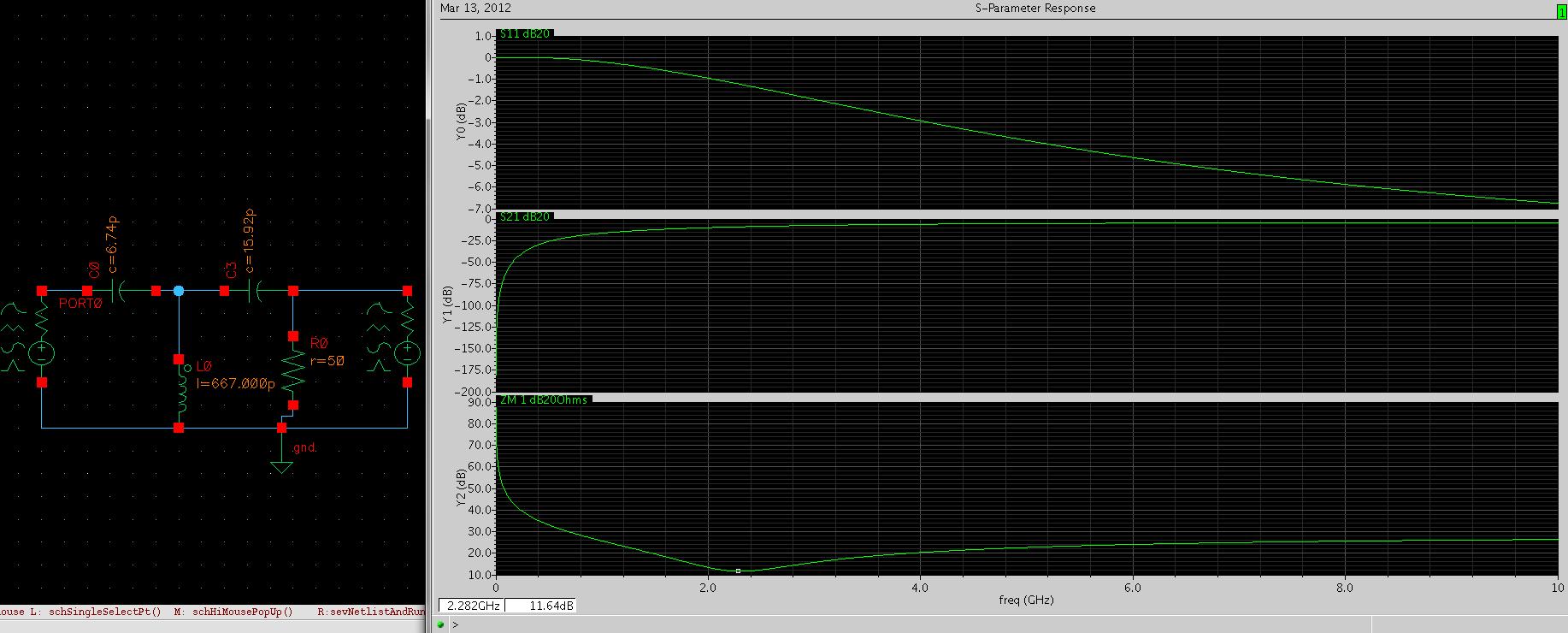

Here I attached the circuit and dB plots of its S11, S21 and ZM1. I designed this circuit for fr (center freq/resonating freq) =2.4GHz and Q = 5. From theoretical concept, I am calculating Bandwidth as
B.W = (fr/Q) = 480MHz.
How can I measure simulated Bandwidth and Q from the plot which I attached for the given T-match circuit?
Regards,
Vinay Rao.
Here I attached the circuit and dB plots of its S11, S21 and ZM1. I designed this circuit for fr (center freq/resonating freq) =2.4GHz and Q = 5. From theoretical concept, I am calculating Bandwidth as
B.W = (fr/Q) = 480MHz.
How can I measure simulated Bandwidth and Q from the plot which I attached for the given T-match circuit?
Regards,
Vinay Rao.
