PLL 3dB Bandwidth and simple AC Linear Model for simulation

Status
Not open for further replies.

mischivis

Junior Member level 2
Joined
Mar 24, 2011
Messages
20
Helped
0
Reputation
0
Reaction score
0
Trophy points
1,281
Activity points
1,425
What is the formula for the 3dB bandwidth of a PLL in terms of the Natural frequency and damping???

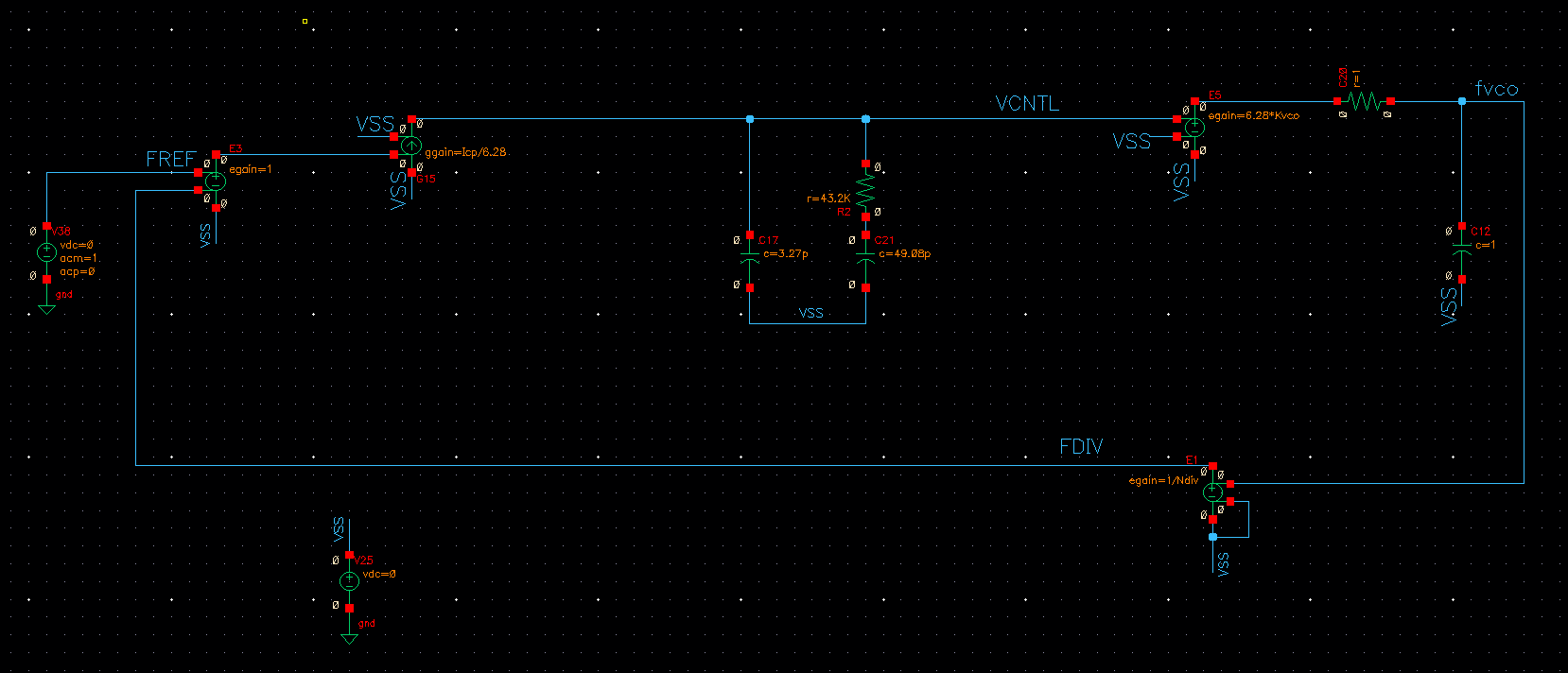

All the formulas I see online are giving me one answer, but when I create a simple linear AC test
bench in Cadence and do an AC simulation, I am getting a different answer. Can somebody look at
this test bench and tell me if I am doing something wrong? Kvco=310MHz/V, Icp=30uA, N=200, and
desired bandwidth I want is 300 KHz.
