[SOLVED] [moved] Please clear my doubt with this circuit and flyback Transformer

Status
Not open for further replies.

SAMUVELNATHAN

Newbie level 3
Joined
May 14, 2015
Messages
3
Helped
0
Reputation
0
Reaction score
0
Trophy points
1
Activity points
25
Hi all,
I took this circuit from our forum only and it was 2 years back. It's Ok my doubt is.

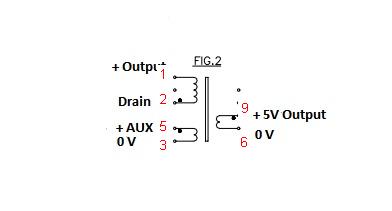

What are circuit points (1,2,3,5,6 and 9) and the pin of the transformer correspond to it as shown in the circuit below?
Also tell me the + Input , 0 Input , + Output , 0 output , Drain and + AUX of the flyback transformer.


Please i wait for response.
My Thanks for all who help me in this.

Best Regards.


KlausST

Super Moderator
Staff member
Joined
Apr 17, 2014
Messages
22,548
Helped
4,652
Reputation
9,320
Reaction score
4,959
Trophy points
1,393
Activity points
149,007
Hi,

What exactely do you want to know?

Klaus


SAMUVELNATHAN

Newbie level 3
Joined
May 14, 2015
Messages
3
Helped
0
Reputation
0
Reaction score
0
Trophy points
1
Activity points
25
Hi,

What exactely do you want to know?

Klaus


Tell me the + Input , 0 Input , + Output , 0 output , Drain and + AUX of the flyback transformer.

Then the numbers 1, 2, 3, 5, 6 and 9. Does they represent the corresponding pins of the flyback transformer?

Note : The points are marked in red in the circuit.


FvM

Super Moderator
Staff member
Joined
Jan 22, 2008
Messages
50,258
Helped
14,532
Reputation
29,336
Reaction score
13,519
Trophy points
1,393
Location
Bochum, Germany
Activity points
288,541
Then the numbers 1, 2, 3, 5, 6 and 9. Does they represent the corresponding pins of the flyback transformer?
Yes, obviously.

Tell me the + Input , 0 Input , + Output , 0 output , Drain and + AUX of the flyback transformer.
Don't know the difference between "0 Input" and "Drain". You'll see the drain pin marked at the switcher IC. As you already recognized input and output winding, just assume that the third winding is Aux. So everything answered, I think.

Looking into a Linkswitch datasheet or application note should be also instructive.


Vbase

Full Member level 6
Joined
Apr 7, 2015
Messages
373
Helped
75
Reputation
150
Reaction score
75
Trophy points
28
Activity points
2,036
The large black dote on the drawing indicates the beginning of the winding, you have to follow that for the inverter to work.
The winding of pins 1,2 will have the highest resistance measured with ohm-meter.
9,6 is the lowest resistance winding and also the thickest wire.
3,5 is also low resistance windings with thin wire.


JOMACOAL

Junior Member level 1
Joined
May 14, 2015
Messages
15
Helped
0
Reputation
0
Reaction score
0
Trophy points
1
Activity points
91
Hi,

I have the same problem. rdk_201_schematic (1).jpg

Please, I need to know this:
- Pin 1 = + Input
- Pin 2 = ??.I don't know.
- Pin 3 = ??.I don't know.
- Pin 5 = ??.I don't know.
- Pin 6 = 0 V Output , Right?
- Pin 9 = +5 V Output.

I wait for response and I thank you very much for your cooperation.

Regards.


Vbase

Full Member level 6
Joined
Apr 7, 2015
Messages
373
Helped
75
Reputation
150
Reaction score
75
Trophy points
28
Activity points
2,036
Is your problem that you can't find the pins locations on the transformer?


JOMACOAL

Junior Member level 1
Joined
May 14, 2015
Messages
15
Helped
0
Reputation
0
Reaction score
0
Trophy points
1
Activity points
91
Is your problem that you can't find the pins locations on the transformer?

Hi Vbase,

Yes, that's the problem.


Image of the flyback Transformer , at what numbers do they correspond?

You understand me.

Regards.
