getting 4.5v and 6 v from 1 4xaa battery case?

Status
Not open for further replies.

coolgod

Junior Member level 2
Joined
Apr 2, 2011
Messages
21
Helped
0
Reputation
0
Reaction score
0
Trophy points
1,281
Activity points
1,463
https://www.edaboard.com/thread209652-2.html#post885626
That was my original thread asking for help getting 2 different voltage 4.5v and 6v from a battery case.
After takening into account of some of the ideas posted I got a new case for 4xaas.
the diagram wiring looks like this

anyone know anyway I can get 2 voltage simulataniously from this battery pack?
Where do i solder the wires ty?


kak111

Advanced Member level 4
Joined
Mar 30, 2011
Messages
1,366
Helped
933
Reputation
1,868
Reaction score
907
Trophy points
1,413
Location
Finland
Activity points
10,942

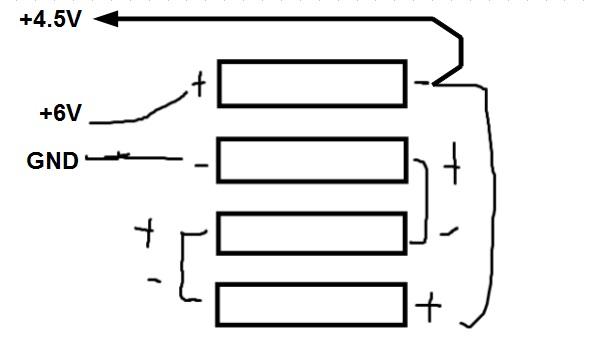

Connect this way......................



Regards KAK


leo_o2

Advanced Member level 4
Joined
Sep 3, 2004
Messages
1,324
Helped
277
Reputation
556
Reaction score
240
Trophy points
1,343
Location
China
Activity points
5,761
If you want to have constant 4.5V and 6V from battery, you need power management IC to regulate the voltage.
Battery voltage will drop as it run out of energy.


coolgod

Junior Member level 2
Joined
Apr 2, 2011
Messages
21
Helped
0
Reputation
0
Reaction score
0
Trophy points
1,281
Activity points
1,463
ty kak111 it works.
Not really worried about constant power.
As long as it works.
