6-channel timer of own construction

Status
Not open for further replies.
V

Vermes

Advanced Member level 4
Joined
Aug 2, 2011
Messages
1,163
Helped
0
Reputation
0
Reaction score
0
Trophy points
1,316
Activity points
22,318


This 6-channel timer can control (enable) connected to it devices at a certain, fixed time. Executive elements are triacs BT136 control from optotriacs MOC3041. Settings are stored in EEPROM and the clock is maintained by capacitor 1F. All the necessary materials are attached to the original thread – link below.

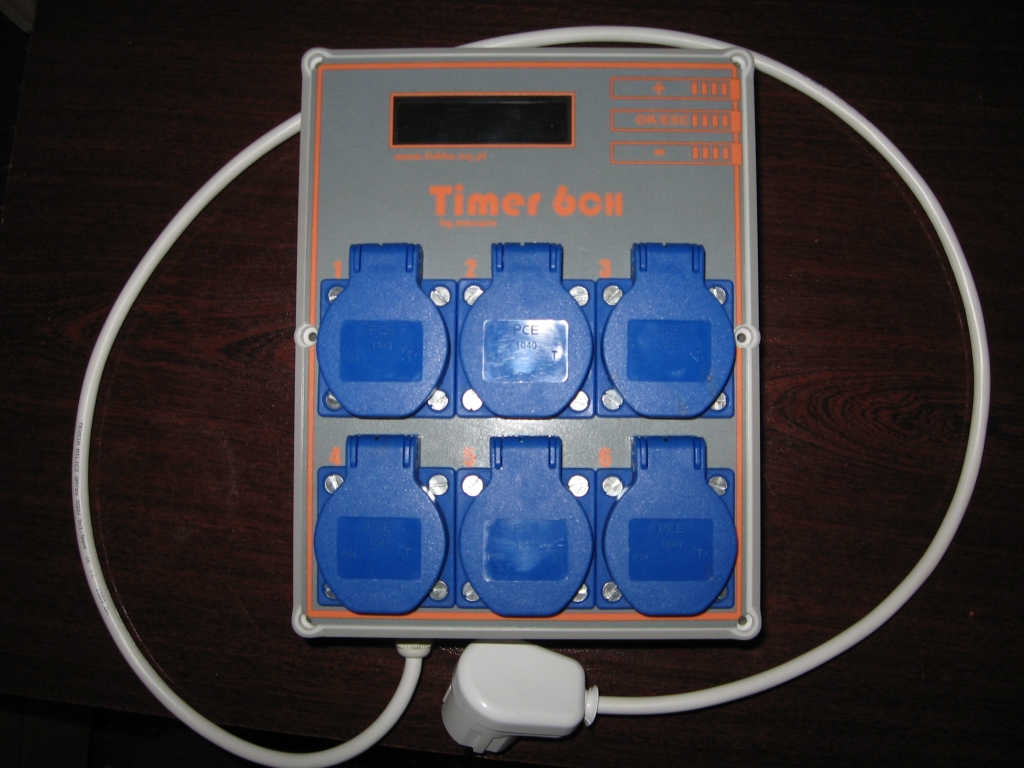

Pictures:
