Transfer function of Instrumentation amplifier with DC suppression filter

Status
Not open for further replies.
S

shaikss

Full Member level 4
Full Member level 4
Joined
Jun 18, 2007
Messages
229
Helped
1
Reputation
2
Reaction score
1
Trophy points
1,298
Visit site
Activity points
3,319
Hi All,

Can you pls help me out to solve the transfer function of the below circuit?

https://obrazki.elektroda.pl/4751598400_1354519547.jpg

I am able to solve TF for an normal instrumentation amplifier. But when it is followed by DC Suppression filter, I am unable to do so.

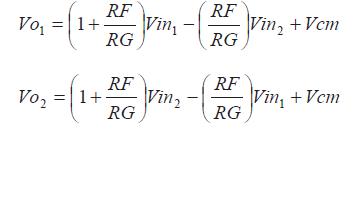

V01 and V02 voltages are shown in the below figure.
https://obrazki.elektroda.pl/5906462900_1354519717.jpg

How to calculate the final Tranfer Function as shown in Equation(4) of below figure?
https://obrazki.elektroda.pl/4329461200_1354519842.jpg

Please help me out to solve the overall transfer function.
