Problem with red error diode in ICD2

[e457]

It's my ICD2 picture.

glad to reg this forum



[predrage]

Re: My ICD2

Did anyone saw red LED diode (error diode) shining. I have icd2 clone for few months and during work several errors were ocured but red diode was always off.



[dsMasoud]

Re: My ICD2

Nice pack for ICD2 . there are many topics and posts about iCD2 in this forum but when a newbie want to make a ICD2 being confused.please post your complete design for icd2( schematic, pcb ,firmware , and your nice notes).your post could be a good reference for all who want to make iCD2.
thanks



[predrage]

Re: My ICD2

**broken link removed** and read post This is a working RS232.... ICD2 !!!! by crazy duck. This is all that you are need.



[milkdrop]

Re: My ICD2

Did anyone saw red LED diode (error diode) shining. I have icd2 clone for few months and during work several errors were ocured but red diode was always off.

yes, on my ICD2 clone I've seen it flashing when I used wrong bootloader, but after it, using a right bootloader it remains idle.

Added after 4 minutes:

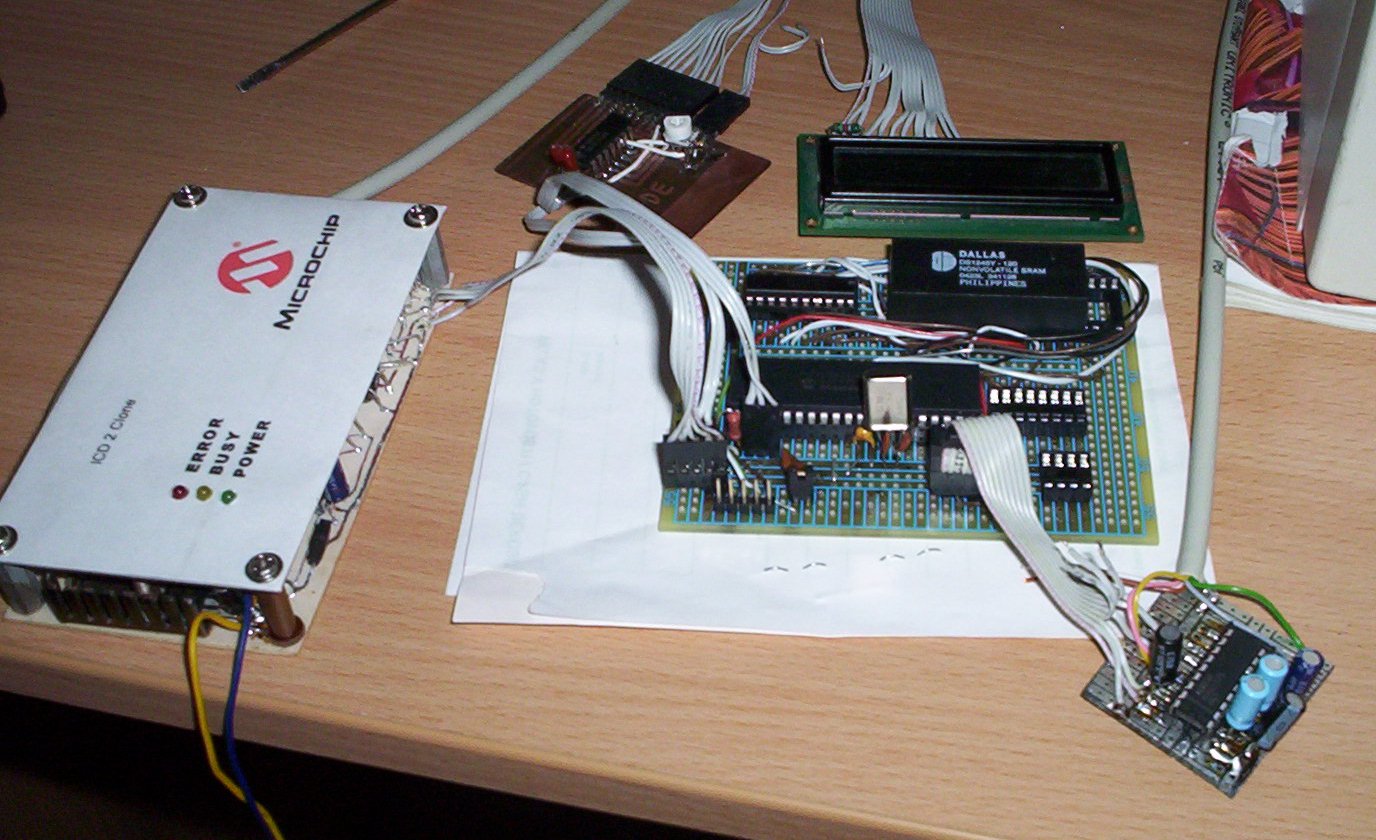

by the way, there is image of my device

http://www.floyd.szm.sk/b/icd.jpg

it's conneted to little experimental board with 18F452, and up on right side is standard 16*2 char display, so you ccan imagine size of my ICD clone

sorry for poor quality of image, my old old camera can't do it better.
