CST-Coplannar Waveguide design. Something is wrong. Please help to check. thx

[microelectronics]

Hi guys, i just model a basic cpw. but i could not get the correct s-parameter result. I suspect it might be the port.
Do i need to add space? *background property*

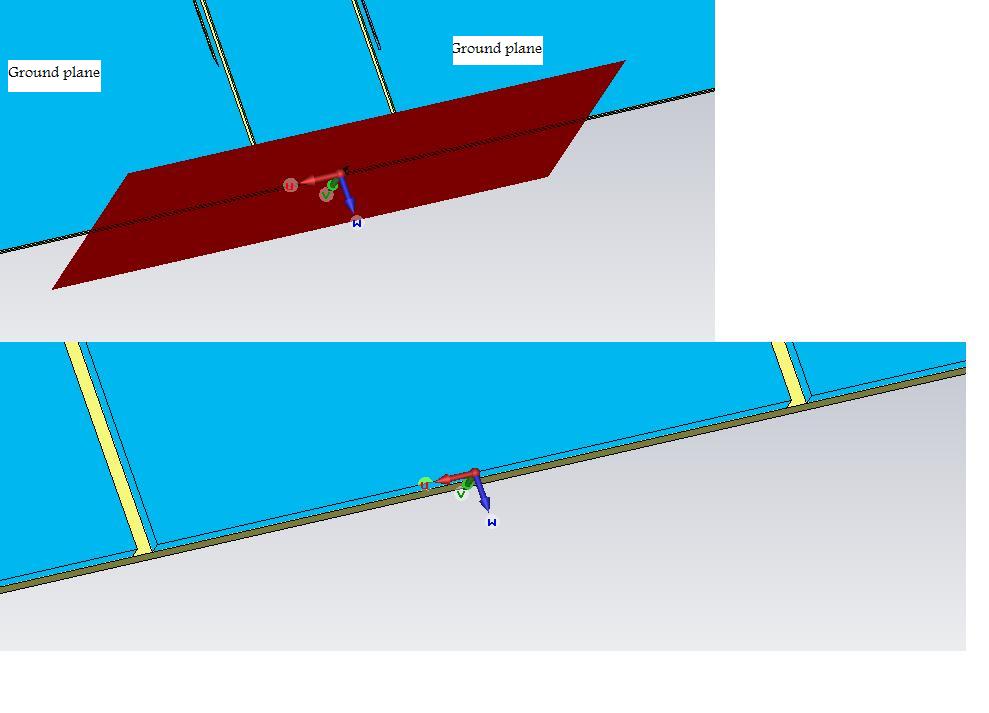

below is the picture.



thanks



[bubuta77]

Try to model sma connector and put waveguide port on it.
https://www.edaboard.com/threads/265445/ -> here you can find my example at CST2011 with modeled SMA connector



[microelectronics]

Hi bubuta77,

Thanks alot!
Appreciate the help. =D
thank you
