TDR plot of a PCB trace seems tilted

Status
Not open for further replies.
buenos

buenos

Advanced Member level 3
Advanced Member level 3
Joined
Oct 24, 2005
Messages
962
Helped
40
Reputation
82
Reaction score
24
Trophy points
1,298
Location
Florida, USA
Visit site
Activity points
9,143
Hi,

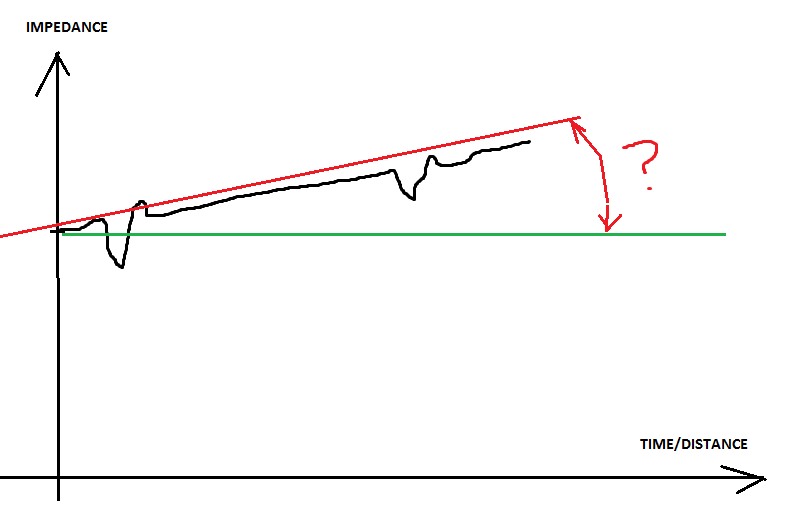

I got a simulated TDR plot of a signal on my PCB, and it looks tilted.
The flat lines that represent traces between the discontinuities should be constant impedance which means horizontal.
But for some reason the flat parts have an angle to the horizontal axis.
Why is that?
