Inductor for 3rd overtone xtal

Status
Not open for further replies.

twlin1

Member level 1
Joined
Nov 3, 2005
Messages
33
Helped
1
Reputation
2
Reaction score
0
Trophy points
1,286
Activity points
1,518

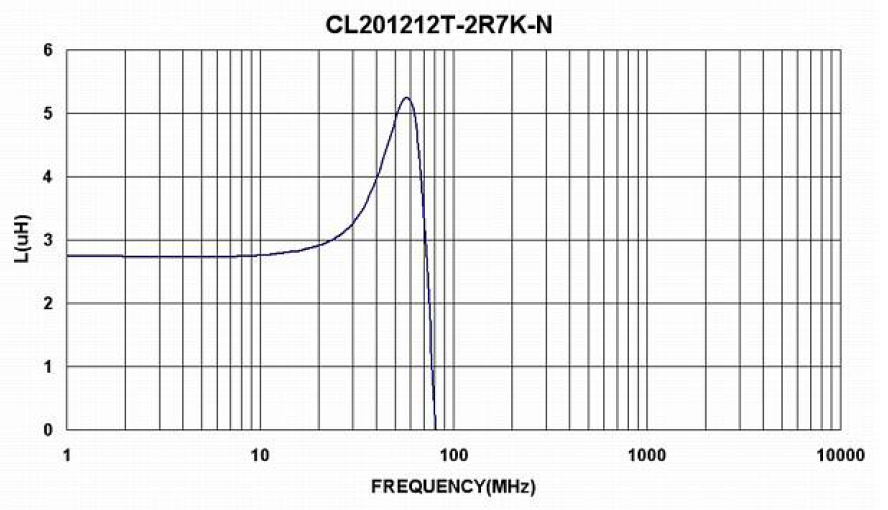

I choose 2.7uH-inductor/ 1nF-capacitor for highpass filter in 3rd overtone 48MHz xtal apllication. But from the attahced figure, "L vs freq", L at 3rd overtone 48MHz is close to 5uH, which is much bigger than 2.7uH at 16MHz fundamental mode.



Is the inductor okay? Am I right in judging the inductor good/bad by the "L vs freq." for 3rd overtone xtal apllications? And when I simulate with 48MHz crystal model, which inductor value should I include?

Thanks.

Last edited:

FvM

Super Moderator
Staff member
Joined
Jan 22, 2008
Messages
47,959
Helped
14,145
Reputation
28,549
Reaction score
12,831
Trophy points
1,393
Location
Bochum, Germany
Activity points
278,225
I think, the "L vs freq" diagram is showing the effect of inductor self-resonancy rather than a varying inductance. The effect can be better modelled by a parallel capacitance. Because I don't know your oscillator circuit, I can't determine if the parallel capacitance matters.

  • Like
Reactions: twlin1

    twlin1

    points: 2
    Helpful Answer Positive Rating

twlin1

Member level 1
Joined
Nov 3, 2005
Messages
33
Helped
1
Reputation
2
Reaction score
0
Trophy points
1,286
Activity points
1,518
I think, the "L vs freq" diagram is showing the effect of inductor self-resonancy rather than a varying inductance. The effect can be better modelled by a parallel capacitance. Because I don't know your oscillator circuit, I can't determine if the parallel capacitance matters.

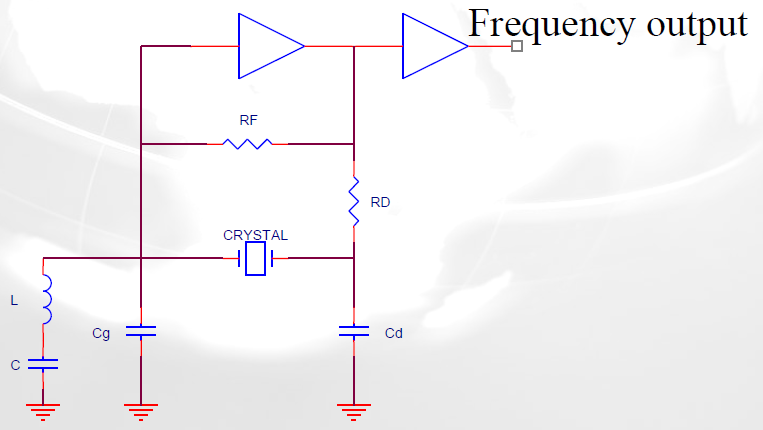

My circuit is as attched figure.

My concern is that if I stand at the point 16MHz, the inductance can suppress 16MHz. But if I stand at 48MHz, the inductance seems too large to suppress 16MHz. Is my point of view right?

Or are there any other concerns when choosing inductor from so many manufacture? Thanks.
