Choice of capacitor for low pass filter

Status
Not open for further replies.

arunbhaskar

Junior Member level 3
Joined
Apr 10, 2010
Messages
28
Helped
0
Reputation
0
Reaction score
0
Trophy points
1,281
Activity points
1,505

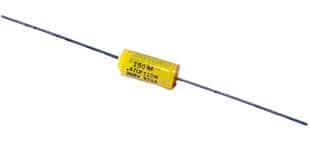

I've designed a low pass active filter(Sallen-key second order) with cut-off frequency 5 Hz. I've used paper capacitor(value 1uF) which looks like this:



Is it ok for my application? I'm asking this because I heard that choosing the right type of capacitor is very important for the circuit to work correctly because different capacitors are optimized for different frequencies.
Thank you.


alperuslu

Full Member level 2
Joined
May 16, 2009
Messages
130
Helped
32
Reputation
64
Reaction score
25
Trophy points
1,308
Location
Istanbul , Turkey
Activity points
1,975
Look its datasheet in datasheet it should be defined which frequency range that your capacitor supply.I think that your frequency is low.For this reason you dont have to care the frequency range.In RF and Microwave the quality factor(Q) of the component decreases with the frequency so if you work high frequency systems you should care the frequency range.Instead of this you can look the other frequencies such as voltage etc.


Audioguru

Advanced Member level 5
Joined
Jan 19, 2008
Messages
9,238
Helped
2,136
Reputation
4,266
Reaction score
1,960
Trophy points
1,393
Location
Toronto area of Canada
Activity points
58,057
Paper capacitors are very old and might fail soon.
I use accurate but inexpensive metalized plastic film capacitors for audio circuits.


LvW

Advanced Member level 5
Joined
May 7, 2008
Messages
5,845
Helped
1,743
Reputation
3,490
Reaction score
1,343
Trophy points
1,393
Location
Germany
Activity points
39,346
Low frequency filters require relatively large time constants - resulting in large capacitors and/or large resistor values. In this context, it is important that the technologie of the capacitors does not lead to leakage effects (parasitic parallel resistances) which come close to the used resistor values and/or to the (neglected) opamp input resistors. Thus, low frequency filters have some problems which middle or high frequency filters do not have.
Recommendation: Use high quality capacitors.
