Hello friends i want to change pad size in eagle but the given pad sizes are in diameter of 2.54,3.81,6.45mm but inbetween sizes are not avilable i need 2mm, 3mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm,6.5mm pads so please tell me how to change the pad sizes as per our needs is there any library avilable of different pad size . please help me its very urgent...
thank you......



https://obrazki.elektroda.pl/54_1230339606.jpg



[CMOS]

eagle via size

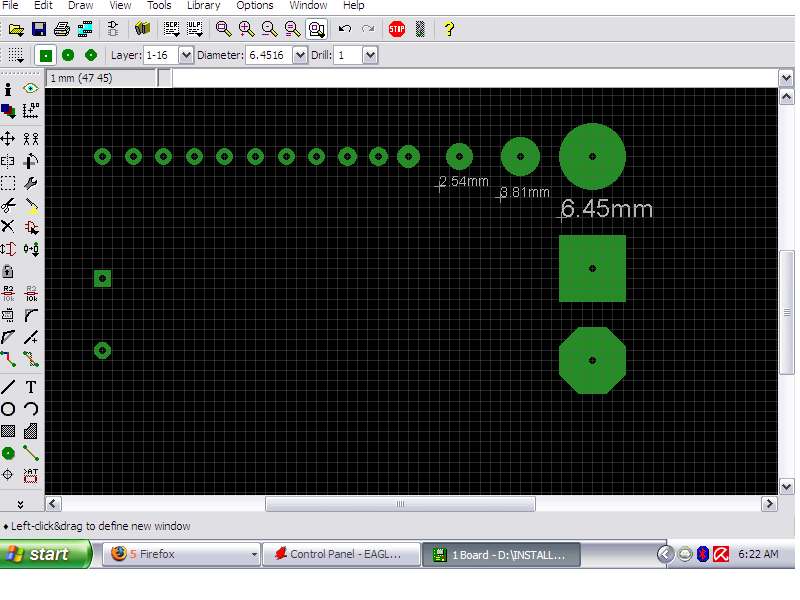

Type in the desired diameter and drill size in the boxes marked in attached image.



[ricky007]

eagle pad

thanks friend

pls say how to bring oval shape pad in eagle (not test pad) like given circular and square pad etc..



[CMOS]

eagle pad shape

What you are placing is actually "via" not "pad". Eagle doesn't support long shape for via. For changing pad shape you need do it in library editor.



[ricky007]

eagle cadsoft

ok friend can u say how to change the pad shape ,
i facing one more problem that is i cant get correct given measurement in printout in layout creating i dont know what is the reason can u help me through correct guiding for this problem and please say were are the places we have to give measurement in eagle software (im giving measurement in 'MM')
thank you......



[confini]

cadsoft

The command to use is "change shape"

You can do this directly on the brd if it's for a via, otherwise if you want to change the pad of a component you have to open and edit the relative library

hope this helps

C



[ricky007]

2mm eagle pad

thanks friend can u please say how to take printout (for legend,mask,route etc) in eagle with without any variation in size of board measurement .
thank you.



[confini]

changing pad sizes in eagle.brd

Maybe I don't get your question,
but you can simply turn on the needed (for printing) layers and choose "print" from the menu, leaving the scale factor set to 1

Anyway all this stuff is well documented in the Eagle manual (downloadable for free from cadsoft website )

bye

C



[me_guitarist]

eagle vias size

how can I put 'eye drop' on a pad in Eaglev5.30?



[confini]

eagle pad diameter

I don't know if I've got your question, anyway did you try these ULPs? (From CADsoft website)

**broken link removed**

or

**broken link removed**

hope this helps

C



[me_guitarist]

eagle cadsoft drill size

how to use it?

Added after 42 minutes:

I tried nothing happen.



[confini]

eagle square top pads

I saw now your post.
I tried it, as in its documentation the generates a .scr file in the project folder.
Open and run it, it worked straightforward for me (never tried it before your request)

C



[me_guitarist]

eagle pady

ORIGINAL: confini

I saw now your post.
I tried it, as in its documentation the generates a .scr file in the project folder.
Open and run it, it worked straightforward for me (never tried it before your request)

can you post some pictures after running the script?
